Product Specifications
- 7mm x 40mm spindle
- Available in a range of attractive finishes
- Locks in closed position
- Supplied with 1 key
- Unique key controlled tilt / lock mechanism restricts sash movement beyond tilt without use of key
- Ideal for use with patio or window multi-point locks
- Finish Satin Chrome
- Bolt Centres 43mm
- Handle Projection 45mm
- Length 167mm
- Projection 54mm
- Screw Centres 43mm
- Spindle 7mm
- Width 31mm
Description

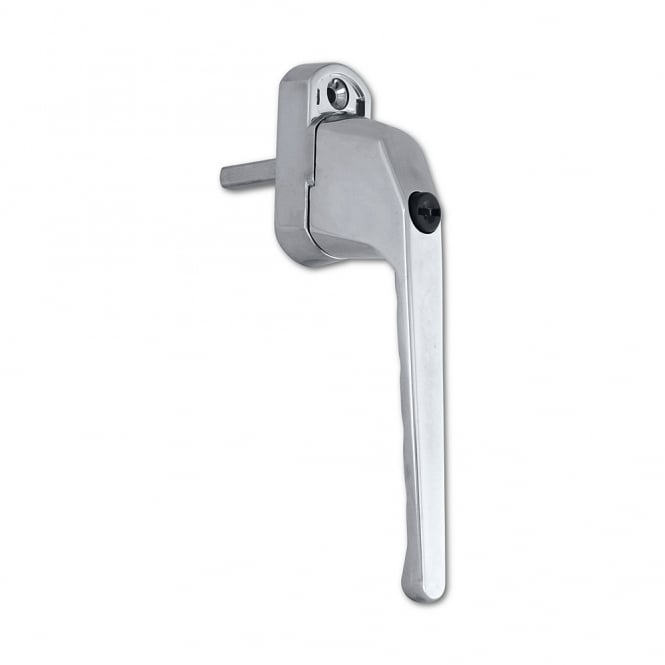

The Satin Chrome Chameleon Window And Patio Door Tilt-Before-Turn Handle. The unique tilt / lock mechanism is designed to be used on multipoint locks and allows the window to be tilted by using the handle alone however requires a key to be used to allow it to be opened fully.
