Product Specifications
- Adjustable arm set for regular, transom and parallel arm installation plus additional bracket included for parallel arm mounting
- Fire rated for timber (FD120) and metal (FD240) fire doors, 2 Hours Timber & 4 Hours Metal
- Certifire approved
- Adjustable closing speed from 130º open to 15º open
- 130º maximum angle of opening (controlled closing) with adjustable latch action for final 15º
- Strength Size: 3
- Screw Centres: 166mm
- Pack Quantity: 1
- Depth: 42mm
- Finish: Satin Chrome
- Handed: Reversible
- Weight: 1.66kg
- Body Width: 182mm
- Body Height: 42mm
- Body Depth: 61mm
- Max Door Width: 950mm
- Max Door Weight: 60Kg
Description

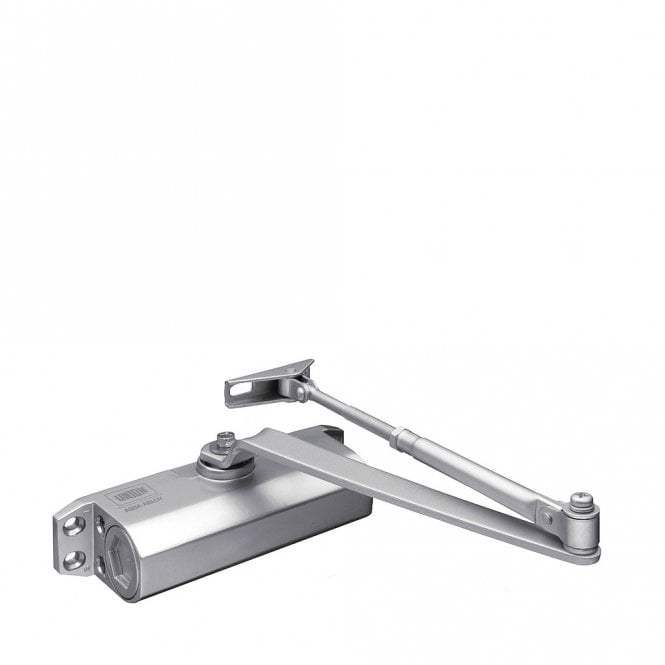

The UNION CE3F size 3 door closer is suitable for retrofitting and easy to install and adjust, the rack and pinion door closer is a stylish and robust door closer which has been fire rated for timber (FD120) and metal (FD240) fire doors and Certifire approved. The Door closer is CE Marked to EN 1154 in all 3 positions, and featurs a 10 year guarantee, this product is fully equipped to ensure full peace of mind.
The Union CEF3 is supplied complete with all required fixings as well as being fully adjustable with adjustable latching, handing, closing speed and arm (which can be installed as either regular, transom or parallel).
