Product Specifications
- Adjustable Closing Action
- Adjustable Latch Action
- Backcheck
- Fire Tested 2 Hours Timber & 4 Hours Metal
- Maximum door width of 1100mm
- Suitable for single- and double-leaf doors
- Depth 45mm
- Length 232mm
- Max Door Weight 80kg
- Max Door Width 1100mm
- Strength Size 2 to 4
- Width 68mm
- Application Fig 1, Fig 61, Fig 66
Description

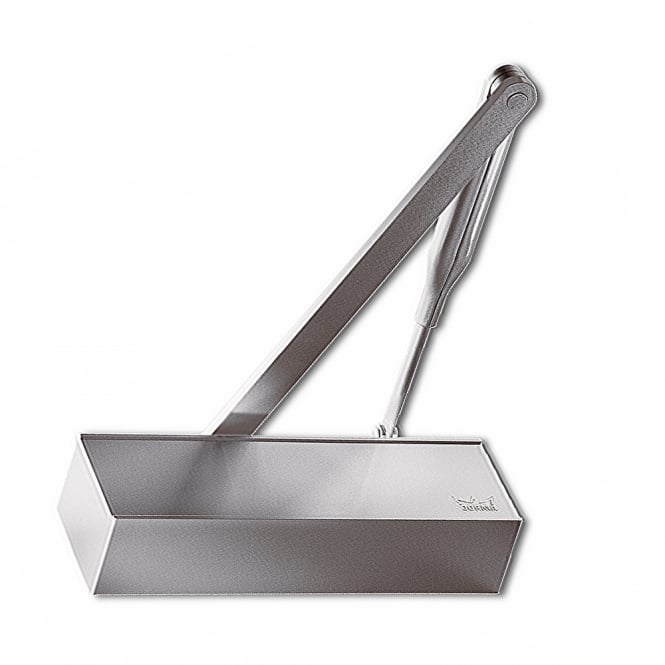

The silver enamel TS72V from Dorma is a multipurpose door closer suitable for all standard door designs and constructions with a maximum door width of 1100mm. The silver enamjel TS72V is easy and quick to install, and includes a adjusting screw which allows the spring strength to be individually adapted to doors of different sizes. The door closer from Dorma combines a compact construction with a timeless design, and offers oustanding value for money.
