Product Specifications
- Adjustable Closing Action
- Adjustable Latch Action
- Fire Tested 2 Hours Timber & 4 Hours Metal
- Easy and quick install
- Compact construction
- Inexpensive solution for standard doors
- Maximum door width of 1100mm
- Suitable for single- and double-leaf doors
- Depth 45mm
- Length 232mm
- Max Door Weight 80Kg
- Max Door Width 1100mm
- Strength Size 3 to 4
- Width 68mm
- Application Fig 1, Fig 61, Fig 66
Description

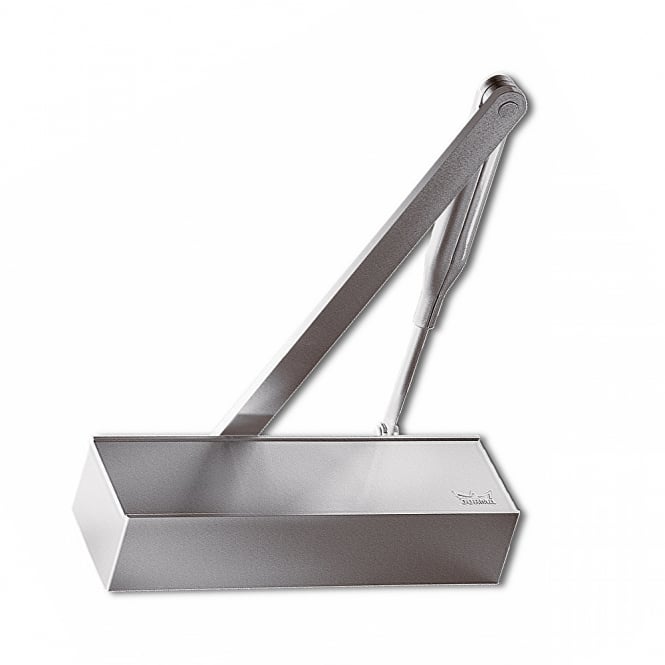

The silver enamel TS71 Overhead Door Closer from Dorma is a great classic looking and inexpensive solution for all standard single- and double-leaf doors with a maximum width of 1100mm. Installation can be completed in no time thanks to the compact construction and the ease with which the spring strenght can be adapted to different door sizes.
