Product Specifications
- Adjustable Closing Action
- Complies To BS EN 1154
- Adjustable Latch Action
- Backcheck
- Supplied with cement box
- Spindle and cover plate not included
- Available in handed and non-handed variants to suit single action doors
- Full hydraulic control of the closing action from 180°
- Depth 78mm
- Height 60mm
- Length 341mm
- Max Door Weight 300Kg
- Max Door Width 1100mm
- Strength Size 4
- Width 78mm
Description

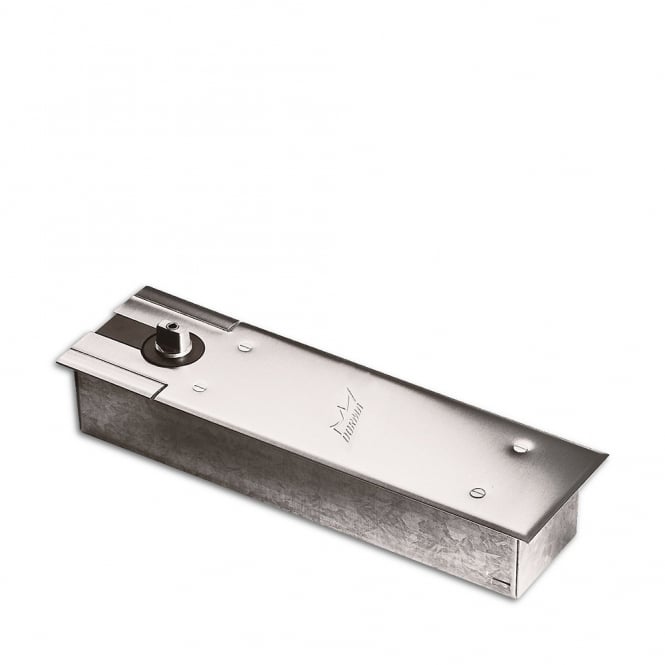

The BTS80F concealed door closers range from Dorma offers a discreet, highly adaptable door closer that is suitable for use on fire and smoke check doors. The left handed fixed backcheck floor spring is suitable for use on doors up to 300Kg in weight and 1100mm in height. This CE marked and Certifire approved door closer features full hydraulic control of the closing action from 180° and adjustable latching. The Spindle and cover plate are not included. Suited for use on single action doors only and is supplied with cement box.
